- Application field:
- Pharmaceutical industry, bioengineering, fine chemicals,
- Material type:
- Solid-liquid
- Model:

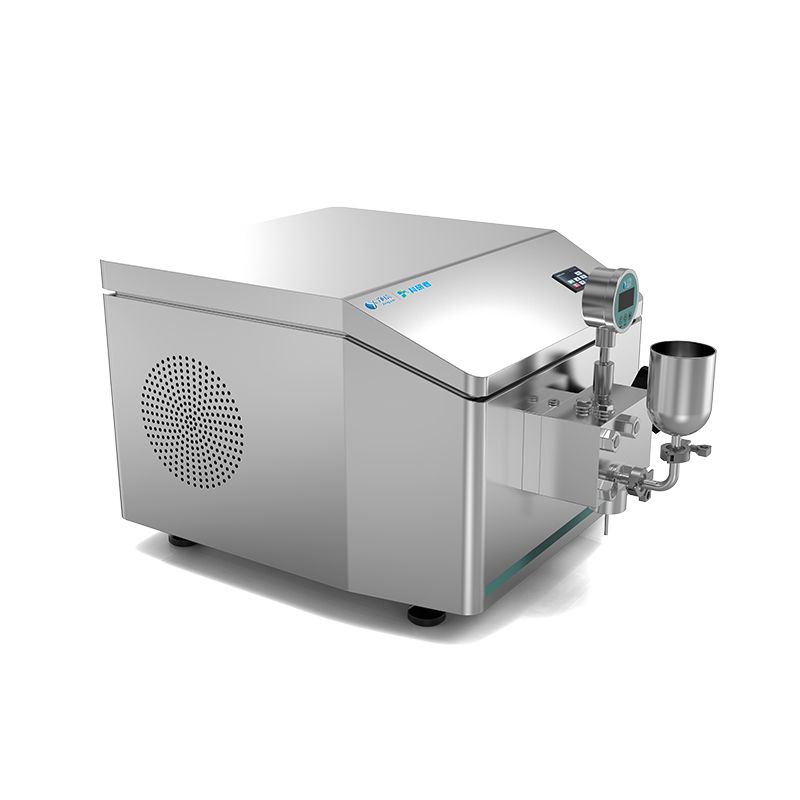

- JXNANO-5 JXNANO-15 JXNANO-30
- main function:
- Homogenize, break wall and refine
Homogenization is a process of micronizing and homogenizing dispersions in suspension (or emulsion) systems, which simultaneously reduces dispersion size and improves dispersion uniformity.
Principle of high pressure homogenization:
When the high-pressure pump head assembly works, the material is sucked into the pump cavity through the one-way valve. Under the force of the plunger, the material between the pump cavity and the homogeneous valve seat will be extremely high pressure.
When high-pressure materials pass through the homogenization valve assembly, the following three effects are produced:
① Shear effect, the gap between the homogeneous valve seat and the valve core is very small, and the material particles are sheared.
② hole corresponding, high-speed extrusion of materials instantaneous pressure loss,* finally achieve the purpose of uniform distribution of materials
③ collision effect, high-speed extruded materials impact on the collision ring at a very high speed, resulting in impact crushing
Applications:
Preparation of fat particles, drug-loaded emulsion homogenization, liposomes, nanosuspensions and microcapsules in the pharmaceutical industry;
Cell fragmentation, extraction and homogenization of intracellular and extracellular substances of bioengineering products;
Production and preparation of fine chemicals, carbon nanotubes, graphene, conductive paste, resistance paste;
Personal care products-homogeneous dispersion of lipid nanoparticles;
Homogenization and emulsification of food and industrial products to improve product stability;
Product advantages:
① Structural features: single ceramic plunger drive, accurate discharge flow control. Optional plunger lubrication device, seal longer service life.
② Homogeneous pressure: * Large design pressure 1200bar/120MPa/17400psi, choose sanitary digital diaphragm pressure gauge.
③ Homogeneous flow rate: * Small sample size 45ml, especially suitable for expensive pharmaceutical production. Automatic suction, no need for feeding equipment.
④ Component technology: Homogeneous valve seat assembly can be made of zirconium oxide, tungsten steel, diamond, Si Tai Li and other materials, single/double-sided processing, double-sided use, double service life. The second valve disperses emulsification, makes the material distribution more uniform and consistent.
Energy saving technology: equipment frequency conversion control, access to 220V mains can be used, imported brand parts and equipment more stable, lower energy consumption, higher energy efficiency ratio.
